Product DescriptionCompany Info.<>
- Processing customization:
- Yes
- Model:
- BJCleannerM10-500
- Processing capacity:
- 100
Garbage clothing collection system integrated pipeline cleaning machine

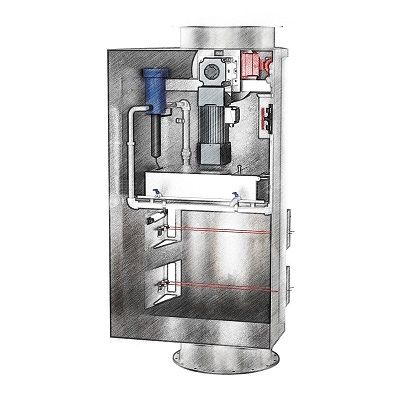

Integrated Chute Cleaning Machine of Waste & Linen Collection System
Suzhou Bingjia Intelligent Technology Co., Ltd. develops and produces medical waste collection system pipeline cleaning mechanism, also known as washing machine, washing machine, to solve the problem that the brush head can only move up and down vertically but cannot rotate horizontally in the industry.
Integrated Into Onecharacteristic
1.Integrated —modular tubular design, easy to transport, install and maintain
2.Stock solution monitoring —comes with 20L cleaning and disinfection stock solution tank, real-time liquid level monitoring, low liquid level alarm prompt
3,automatic mixing —configuration automatic mixing proportional valve, according to the ratio of 1:50~1:500 automatic mixing cleaning disinfection solution and water, to meet the needs of different occasions
4,cleaning adjustment —can adjust the spray cycle of cleaning solution, support intermittent spraying of cleaning solution, automatic flow control of cleaning solution,real-time monitoring of water pressure in water supply pipeline, low pressure alarm prompt
5,mode optional —support manual and automatic cleaning mode, automatic mode can be set cleaning cycle, cleaning times, running speed a variety of parameters to meet different cleaning needs
6,motor frequency conversion —configuration high-performance inverter, support motor running speed setting, with on-site running time self-learning function
safety
1,position monitoring —support brush head position monitoring, brush head position overrun alarm, brush head position self-reset function
2,safety motor —configuration high reliable motor, built-in loss of power electromagnetic brake, to ensure system safety
3,multiple protection —equipped with multiple motor operation protection, dual infrared position monitoring to achieve automatic motor stop, emergency brake protection button, anti-brush head top automatic stopprotectionswitch
extend
1,brush head optional —support a variety of brush heads, can be selected according to the cleaning effect: verticalmovement brushhead and horizontal self-rotating brush head (no extra power drive)
2.The software system —supports integration and docking with various systems to achieve remote access to running status and remote automatic control.
Features
1. Integrated - Modular cylindrical design, convenient for transportation, installation and maintenance
2. Stock solution monitoring - With 20L cleaning and disinfection stock solution tank, real-time liquid level monitoring and low liquid level alarm prompt
3. Automatic mixing - Equipped with automatic mixing proportional valve, it can automatically mix cleaning and disinfection stock solution and water according to the ratio of 1:50 ~ 1:500 to meet the needs of different occasions
4. Cleaning adjustment - It can adjust the spraying cycle of cleaning solution, support intermittent spraying of cleaning solution, automatically control the flow of cleaning solution, monitor the water pressure of water supply pipeline in real time, and give an alarm of low water pressure
5. Optional mode - Manual and automatic cleaning modes are supported. In automatic mode, multiple parameters such as cleaning cycle, cleaning times and running speed can be set to meet different cleaning requirements
6. Motor frequency conversion - Configure high-performance frequency converter, support motor running speed setting, and have the function of on-site running time self-learning
Safety
1. Position monitoring - Support brush head position monitoring, brush head position overrun alarm and brush head position self reset function
2. Safety motor - Equipped with highly reliable motor and built-in power loss electromagnetic brake to ensure the safety of the system
3. Multiple protection - Equipped with multiple motor operation protection, dual infrared position monitoring to realize automatic motor stop, emergency braking protection button and automatic shutdown protection switch against brush head punching
Extend
1. Optional brush head - Supports a variety of brush heads, which can be selected according to the cleaning effect: moving brush head in vertical direction and horizontal self rotating brush head (without additional power drive)
2. Software system - Support integration and docking with various systems to achieve remote access to operation status and remote automatic control
